Henkion OTDR Fiber Optic Tester 1310/1550nm 26/24dB Optical Fibers Tester Auto OTDR/Parameter Setting,OPM,LS,OLS,Event Map,Cable Tester,Network Tools,8 Style of Fiber Adapters File Setting/Report
$299.89
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.ecuadorfundas.vasosplasticosecuador.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$299.89
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.ecuadorfundas.vasosplasticosecuador.com
Free 30-day returns Details
Product details
| Management number | 211306735 | Release Date | 2026/04/04 | List Price | $119.96 | Model Number | 211306735 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

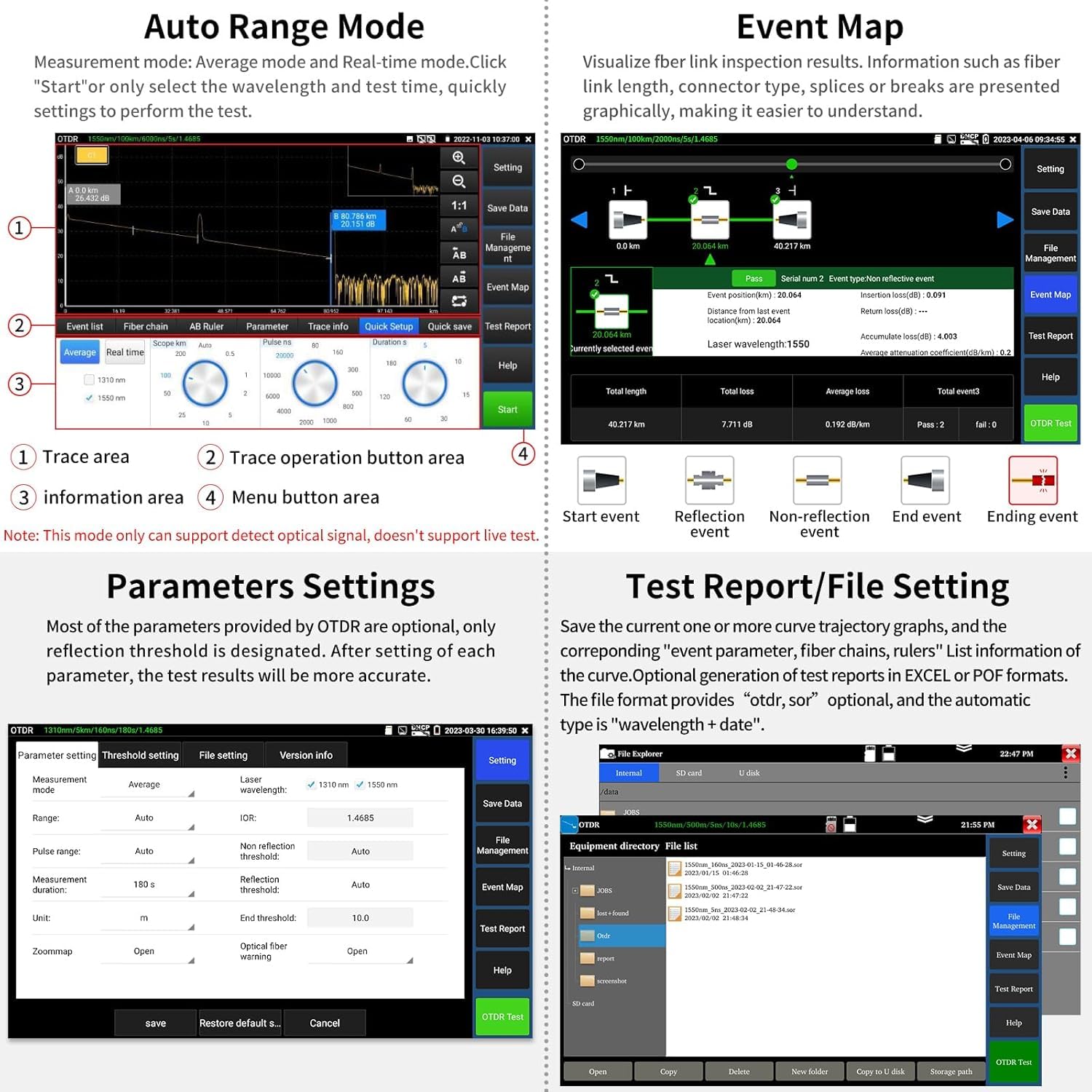

- 【Intelligent OTDR measurement RSO-51】OTDR fiber optical tester provides wavelength of 1310/1550nm and dynamic range of 26/24dB,the max test distance 150km.For auto range mode:only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.Curvest/map are displayed simultaneously.Pls note:This mode doesn't support live test.The 1610nm 26dB support live test.
- 【Curve Analysis & Shortest EDZ ADZ & Data Storage】The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (1.6m) and attenuation dead zone (8m). Save the current one or more curve trajectory graphs ,creat trace reports to the storage path.SOR standard file format PDF/EXCEL.

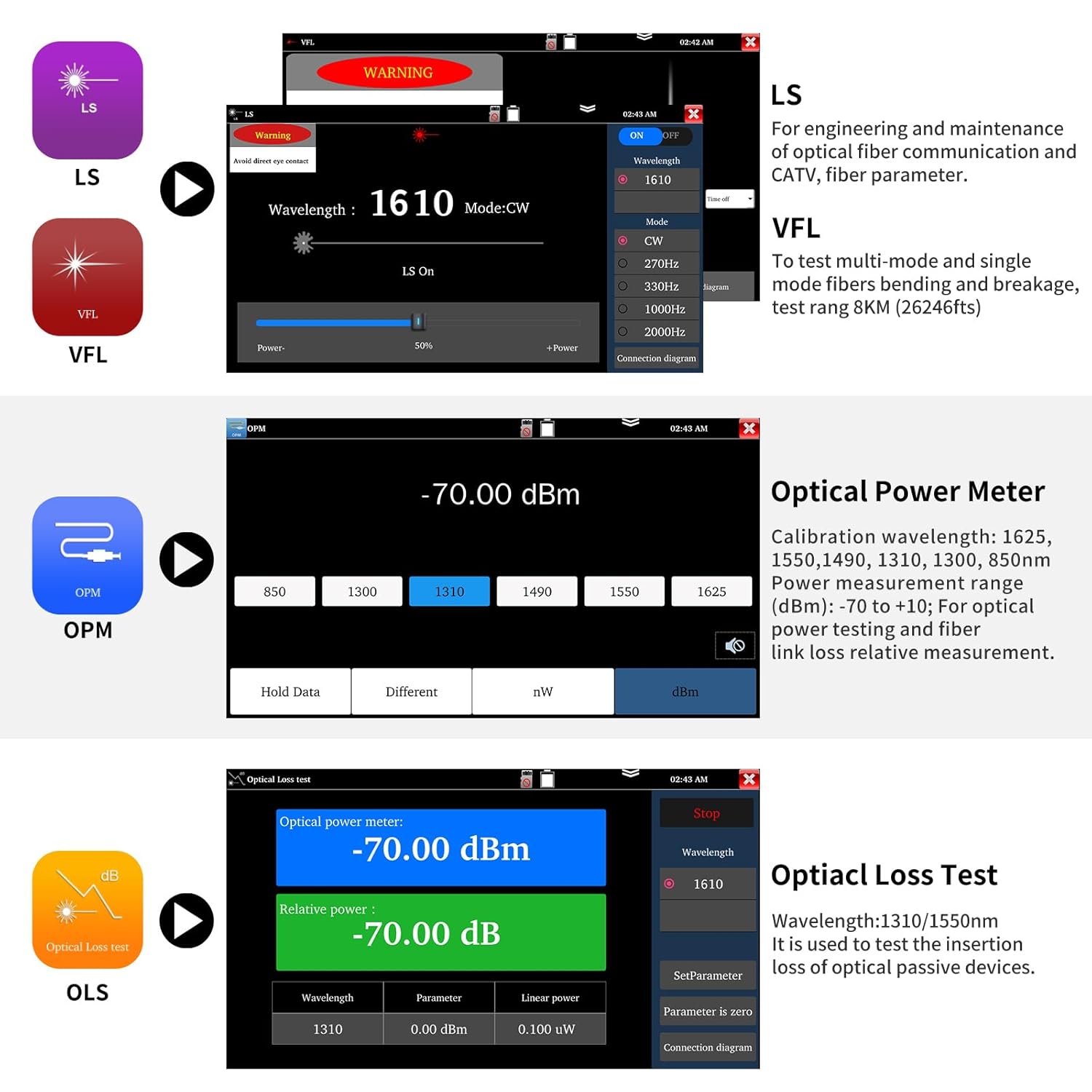

- 【 OPM LS OLS Tools 】5.4 inch IPS touch screen OTDR tester,1280x720 resolution. Optical power meter--It is used for optical power testing and Fiber link loss relative measurement. Optical loss test--used to test the insertion loss of optical passive devices.
- 【Event map & Network Tools】Event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically. Powerful network tools to help you detect and set various network parameters. Network test tools IP address scanning, Link monitor, port flashing, Ping test, switch port LLDP detection, PPPOE, FTP file management.

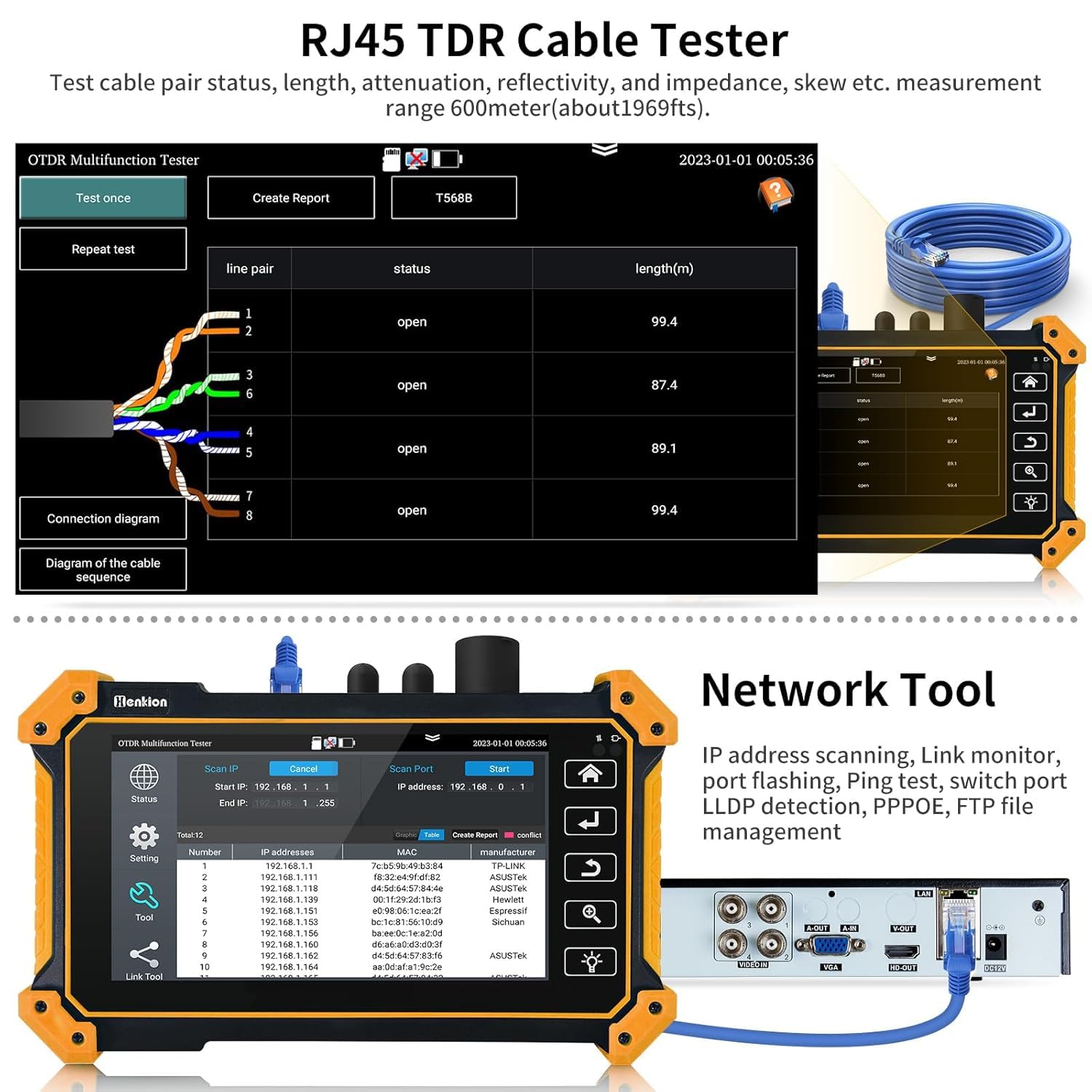

- 【Cable Tester】Built UTP cable tester, RJ45 TDR cable tester, cable length app. Test UTP cable connection status and display on the screen. Detect the near-end,mid-end and far-end fault point of RJ45 cable connector,also can test shield cable. RJ45 TDR cable tester can test cable pair status, length, attenuation, reflectivity, and impedance, skew etc. measurement range 600meter(about1969fts). Measure the disconnection(open circuit status)position of BNC cables,RJ45 network cables,RJ11 cable etc.
| Color | Yellow |
|---|---|
| Brand Name | Henkion |
| Style Name | RSO-51 1310/1550nm 26/24dB |
| Manufacturer | Rsrteng |
| Power Source | Powered |
| Included Components | 8 Styles of Fiber Adapters |
