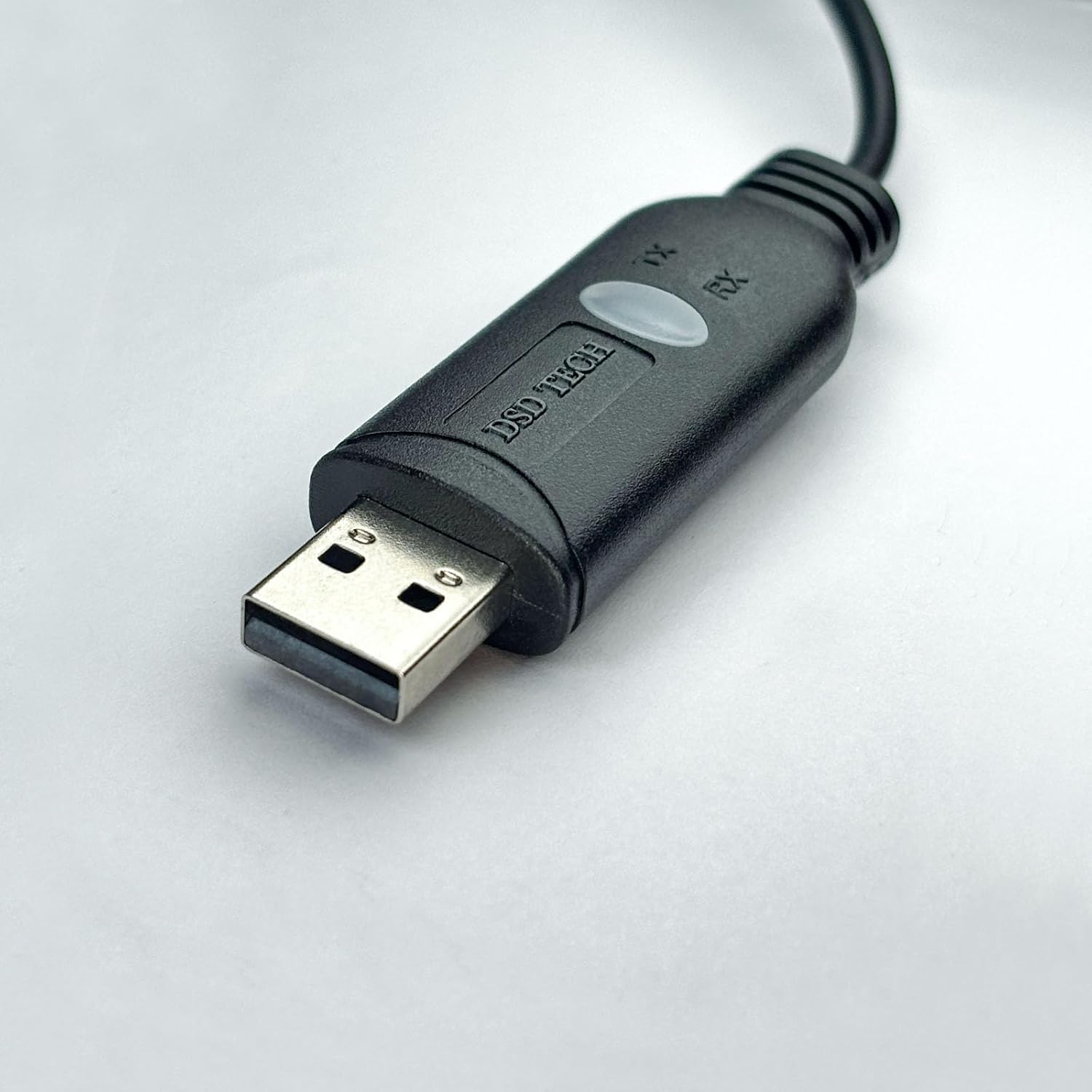

DSD TECH SH-U35A USB to 3.5mm 3.3V TTL Cable with Audio Jack Interface 6FT (Pack of 2)

This is a USB serial TTL 3.3V cable，terminated with a 3.5mm audio jack connector which provides access to the TX, RX and GND signals. Note: PINOUT: Tip- TX (device-RX), Ring-RX(device-Tx), Sleeve-GND. please check the pinout carefully before purchae it. TTL Logic Level: 3.3V Specification Connectors: USB 2.0 serial TTL connector, 3.5mm jack Chipset: FTDI 232RL Cable length: approx 6FT List of supported systems 1.Windows XP,7,8,10 2.Ubuntu 11.10, kernel 3.0.0-19 or above 3.Mac OS X 10.3 to 10.8 (32 &64 bit) 4.Mac OS X 10.9 and above(64 bit) 5.PC or notebook with a free USB type A port You can download the driver directly from FTDI's website Package Content: 1 X USB Serial RS232 to 3.5 mm Jack Cable 1 X Driver CD WARRANTY: We back this USB Serial TTL to 3.5 mm Jack Cable with 24 months warranty.If you meet any question, Please contact us, we will fix your issue within 24 hours. Important Notes This product uses FTDI FT232RL chip by default, because of the chip out of stock, some production batches use FTDI FT232RNL model chip . Please do not worry, FT232RNL is also the chip produced by FTDI, can completely replace FT232RL. If you still care about these please contact us.

• The information below is per-pack only
• This is a USB serial TTL 3.3V cable,not RS232 Cable，terminated with a 3.5mm audio jack connector which provides access to the TX, RX and GND signals.
• FTDI FT232RL Chipset: Built-in industrial grade FTDI FT232RL chip, high stability, enough to handle a variety of complex situations
• Cable pinout: TIP-TXD, RING-RXD, SLEEVE-GND. Cable length: 6FT
• OS Compatibility: This USB serial rs232 to 3.5mm AJ cable support the operating systems of Win10(32bit or 64bit), Win 7, XP, 2000, Linux, Win CE
• Customer Support: DSD TECH provides permanent technical support and 1 year product replacement service for this USB to TTL Cable. All questions will be answered within 1 working day
