BAC1210-12V Generator Battery Charger (12V/10A, 90-280VAC 50/60Hz)

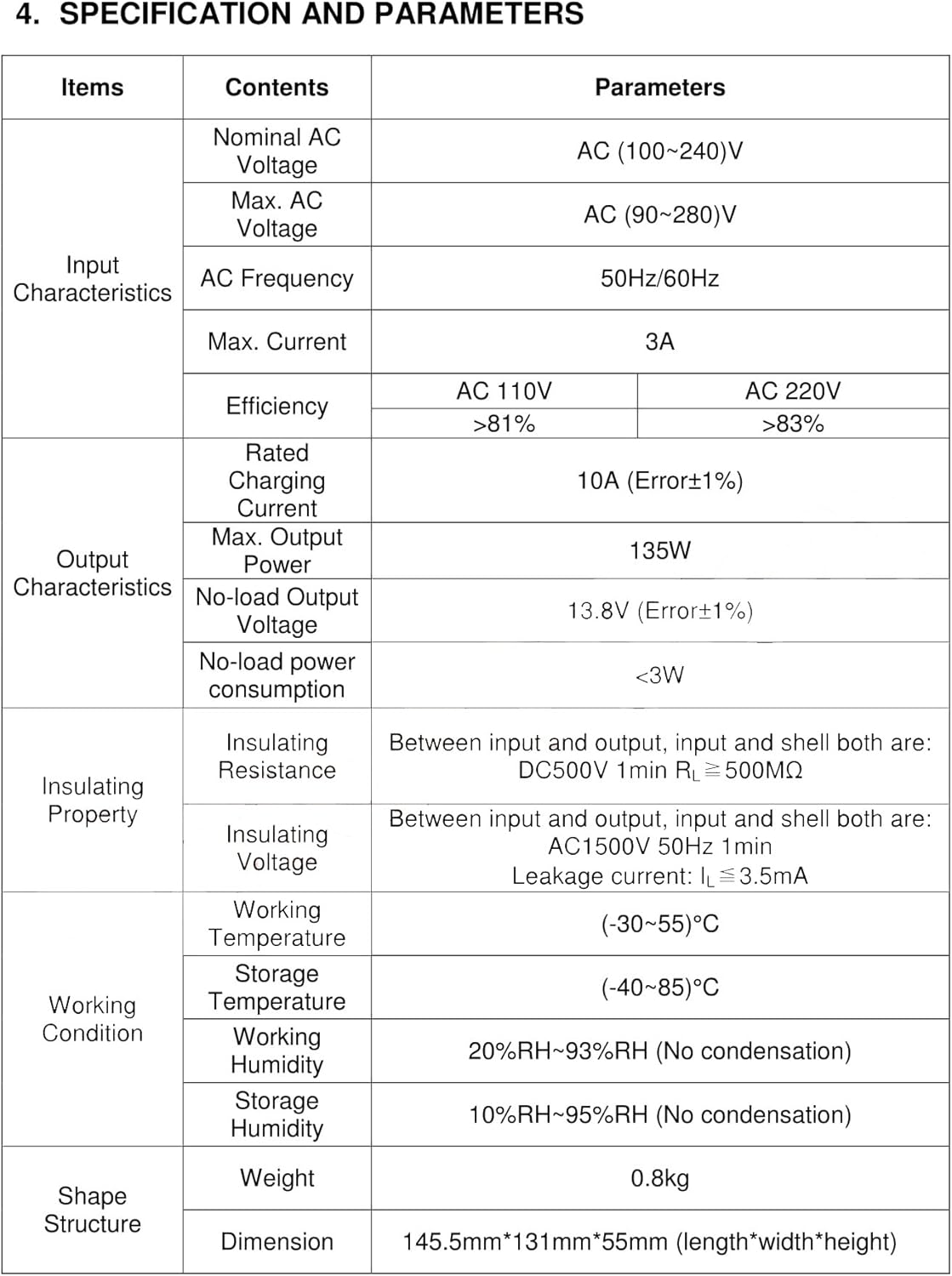

Description: Fit with up-to-date power supply device, float charger BAC1210 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries. PERFORMANCE AND CHARACTERISTICS: Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate; Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime; Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm. Suitable for 12V storage battery and the rated current is 10A; LED display: Power indication (Green light) and charging indication (Red light). TECHNICAL SPECIFICATIONS: Battery Voltage12V Max. Charging Current10A Rated Input Voltage(100~240)V Max. Input Voltage Range(90~280)V AC Input Frequency(50/60)Hz Max. Input Current2.5A No-Load Power Consumption<3W Operating ModeTwo segments Maximum Efficiency83% Operating Temp.(-30~+55)в„ѓ Storage Temp.(-40~+85)в„ѓ Net Weight(kg)0.8 Case Dimensions(mm)145.5*131*55

• Fixed output voltage, current limited lead acid battery charger
• May be used as a stabilized DC power supply
• Designed for permanent connection to generator starter batteries
• Overload and short circuit protections to avoid disconnection during cranking
• Isolated device case allowing a phase-to-phase 170-270V AC connection
