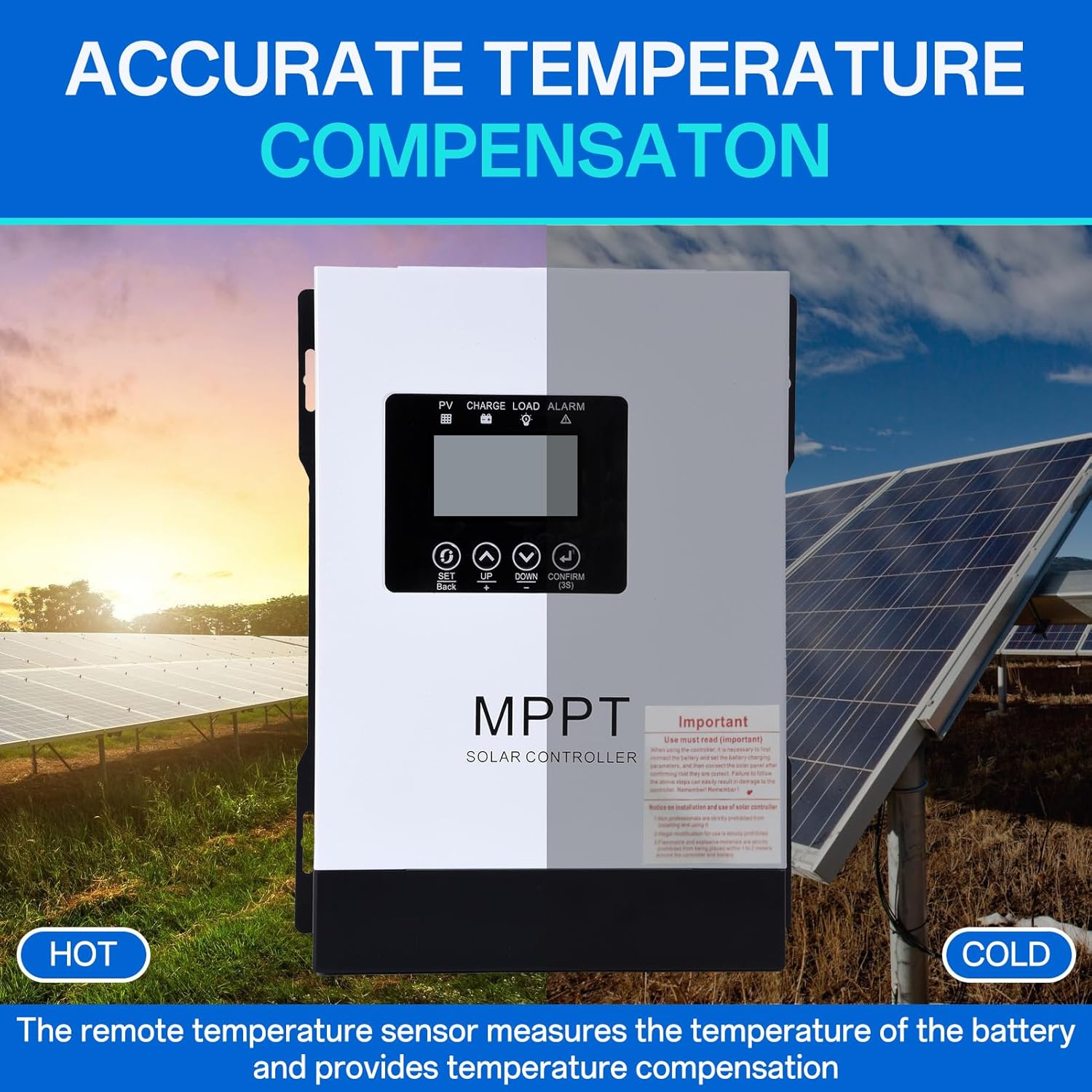

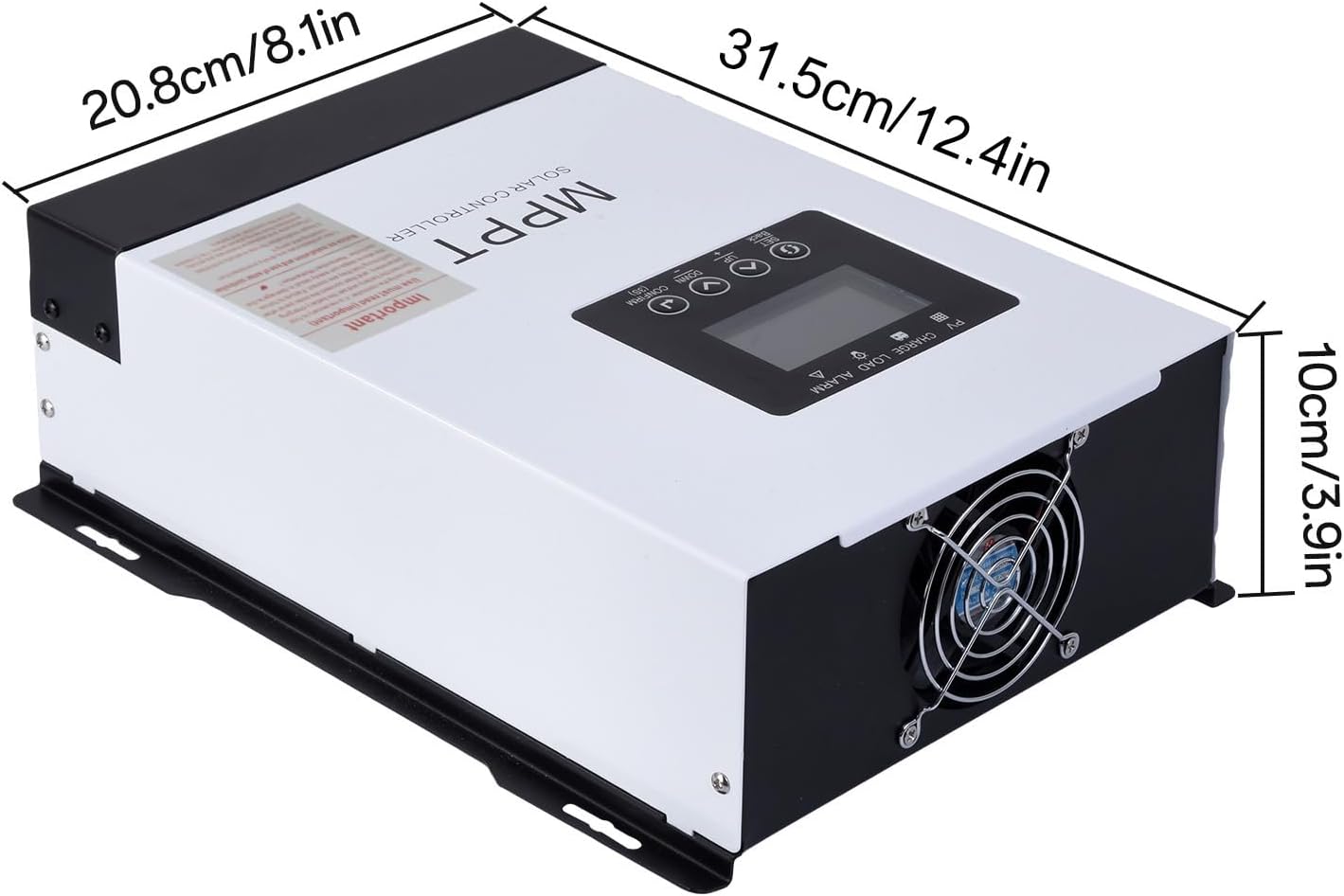

120A MPPT Solar Charge Controller 12V/24V/36V/48V/60V/72V/84V/96V Auto, Solar Panel Regulator Voltage Max PV Input 230V, Multiple Protection Solar Regulator for Sealed Gel Battery

Specifications:Photovoltaic panel input: 15V-230VBattery voltage to be charged: 12-96VWorking environment temperature: -20℃-40℃(Note: This product only has charging function, not 220v output function. Charging power calculation, for example, charging a 12v battery, 12*120=1440w, 24*120=2880w, and so on, the maximum can only support 96v.)Packing list:1*Solar controller1*Instruction manual

• 【Suitable Solar Panels】1440W(12V); 2880W(24V); 4320W(36V); 5760W(48V); 7200W(60V); 8640W(72V); 10080W(84V); 11520W(96V). Maximum input voltage: 230V PV. User programmable absorption voltage/floating voltage/low voltage disconnection. Loading timer. Working environment temperature: -20℃-40℃
• 【APC Series MPPT Charge Controller】12-96V automatic identification of system voltage. Automatic control system limits charging power and current exceeding rated value. Battery low voltage alarm / battery high voltage alarm / over temperature protection / overload protection / short circuit protection. 110%-120% output is maintained for 30s, then the output is transferred to bypass, and above 160% is maintained for 300ms

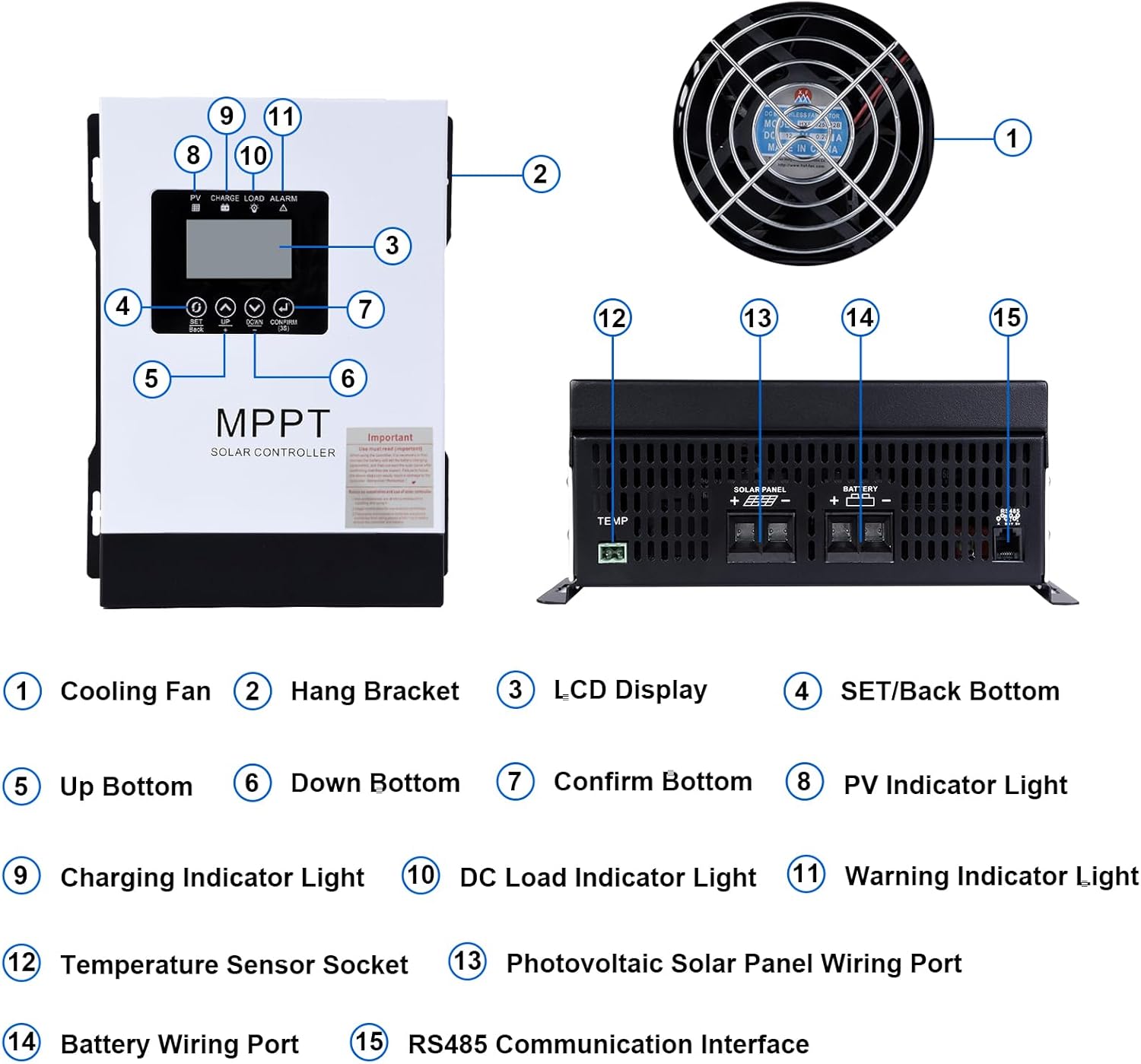

• 【LCD Display】Clearly displays operating data and working status, real-time power statistics function, multiple load control modes, MPPT solar charge controller displays daily power generation curve and current curve. Built-in cooling fan, the fan will turn on when the temperature is >45℃, and the fan will turn off when the temperature is <40℃. The porous heat dissipation and fan use bearing technology, and the life can be extended to 5000 hours in normal use
• 【Support Four Types of Battery Charging】Lead-acid battery (sealed, AGM, colloid, flooded) and user-provided battery (lithium battery). The maximum power tracking rate is ≥99%, and the maximum conversion rate is >97%. It can be widely used in various applications such as solar RV, home systems and industrial site monitoring
• 【RS485 Communication】RS485 communication interface, multi-machine communication, convenient to view the operating parameters of the controller. Support Wi-Fi remote monitoring (extra purchase required)-real-time wireless monitoring of the solar controller is achieved through the APP, simple and convenient setting, and one-click recovery to factory settings. Applicable to multiple systems
